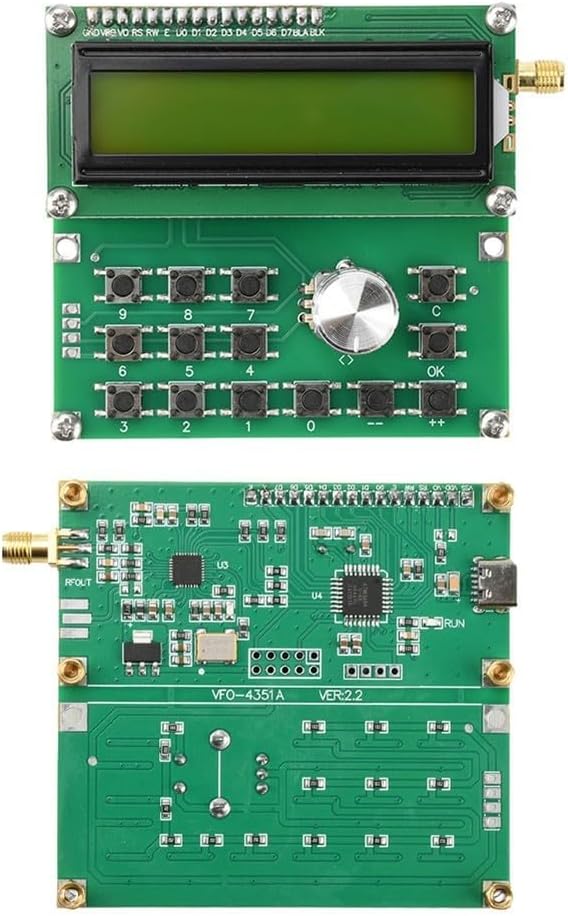

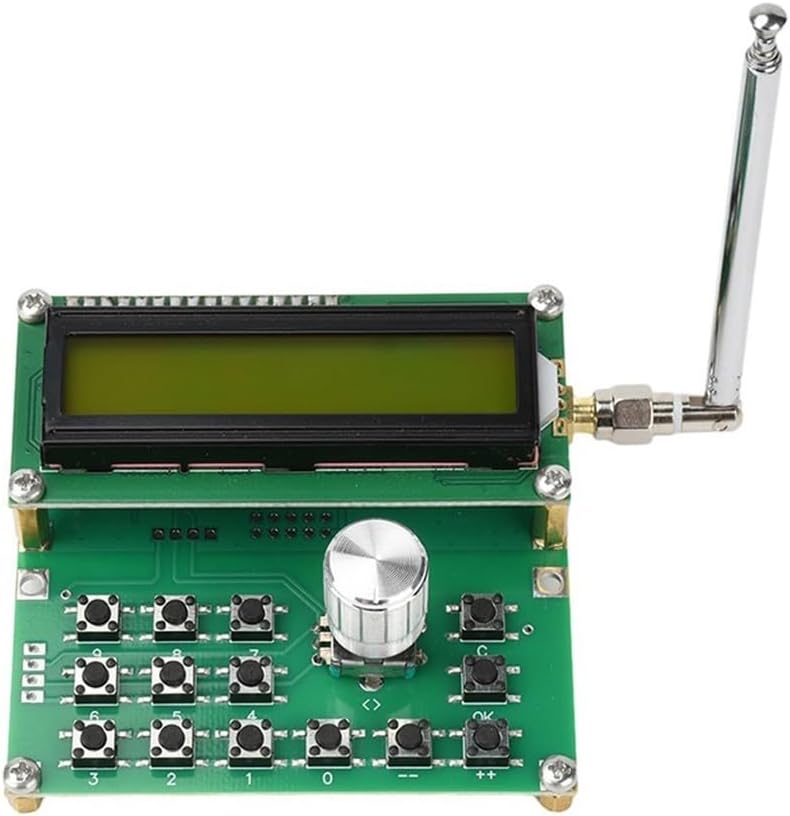

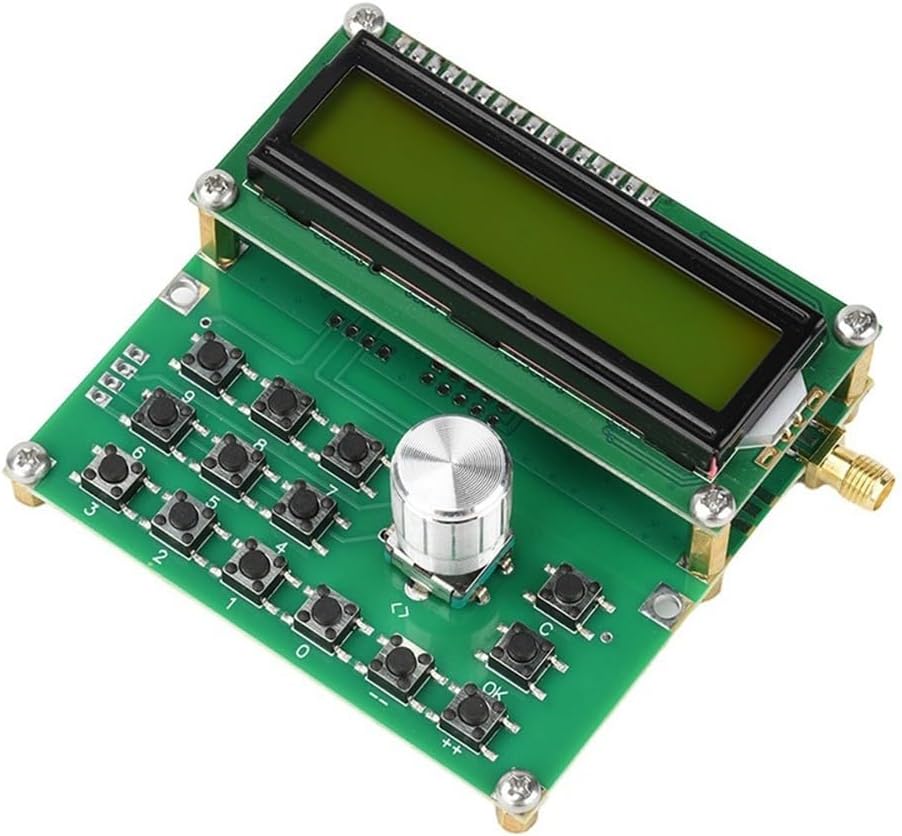

ADF4351 RF Signal Generator 35MHz to 4400MHz Frequency Output with 15 Key Control USB Powered Signal Source for Wireless Testing and Development

Designed for frequency tuning in RF testing environments, this ADF4351 RF Signal Generator provides reliable frequency output from 35MHz to 4400MHz. for radio frequency development, wireless equipment simulation, and lab-based waveform signal analysis, this signal generator features a simple Type-C power interface and a clear 15-button control panel for fast adjustments. Whether you're a hardware engineer developing communications systems or a technician troubleshooting signal chains, the adjustable step settings (1K/10K/100K/1M) allow for both fine-tuning and frequency sweeps. The built-in low-power circuit consumes less than 25mA in standby, making it suitable for long-term integration into portable testing kits. With output for consistent signal delivery and a stable 50-ohm output impedance, this frequency generator board is a dependable solution for RF work.Features:1. Support power supply, wide output frequency range (35MHz-4400MHz), meeting various application scenarios.2. Built-in simple RF signal source generator, convenient for testing frequency-amplitude characteristics of equipment AC .3. The operation keyboard is user-friendly, and 15 function keys support precise frequency adjustment and transmission control.4. Provide four step modes (1K/10K/100K/1M), which is convenient for fast or fine adjustment of frequency output.5. Low power consumption design, standby current is less than 25mA, suitable for long-term use and portable applications.Specifications:Product name: RF signal generatorMaterial: PCB board, metalColor: greenSize: 80mm*75mm*30mm (excluding interface)Power supply interface: Type-CPower supply voltage: DC 4.5V-5.5VStandby current: <25mATransmitting current: <150mAOutput impedance: 50 ohmsOutput frequency range: 35MHz-4400MHzOutput step: 1KHz-8KHzOutput: For standard interface inner holeOutput power: -1dBm (W) @ 150MHZ (test power absolute value) about 1 for mWPackage Content:1*RF signal generator1*antenna

• Wide Frequency Coverage for RF Tasks: This ADF4351 signal generator supports a 35MHz to 4400MHz range, for wireless device testing, signal simulation, and RF development environments.
• Powered for Easy Operation: Operates on a standard 5V (Type-C) power input, making this RF signal source convenient for desktop labs, field technicians, and mobile signal analysis stations.
• Control via 15-Button Interface: Features 15 tactile function keys for fine control of frequency settings, sweep functions, and transmission activation, enhancing testing accuracy in RF systems.
• Flexible Step Adjustment: Allows frequency output tuning in four steps (1KHz, 10KHz, 100KHz, 1MHz), letting users choose fast scanning or narrow-band fine calibration for different application needs.
• Low Power Design and Form: With standby current under 25mA and 80×75×30mm size, this RF frequency generator is perfect for portable setups, embedded testing stations, and long-term use.
