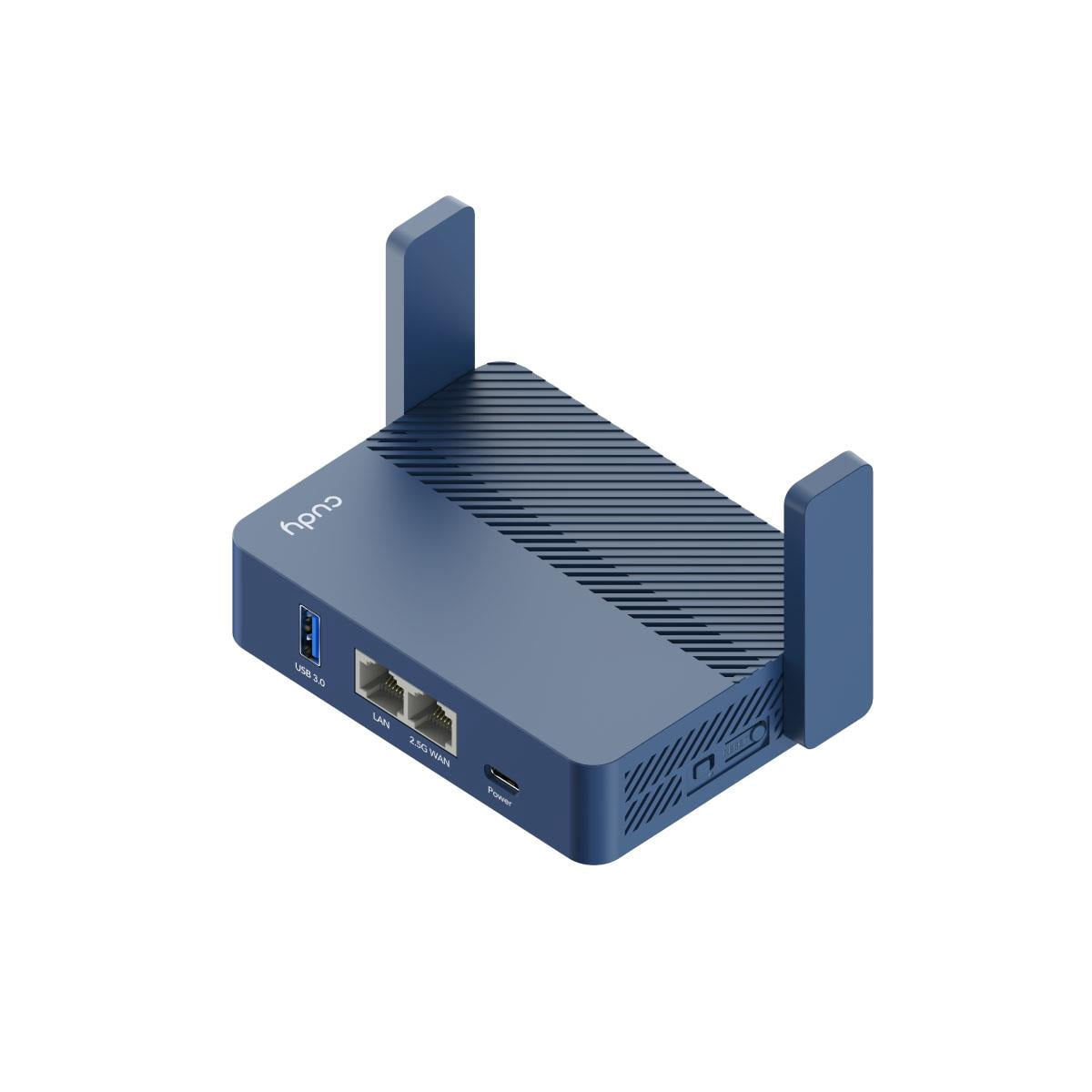

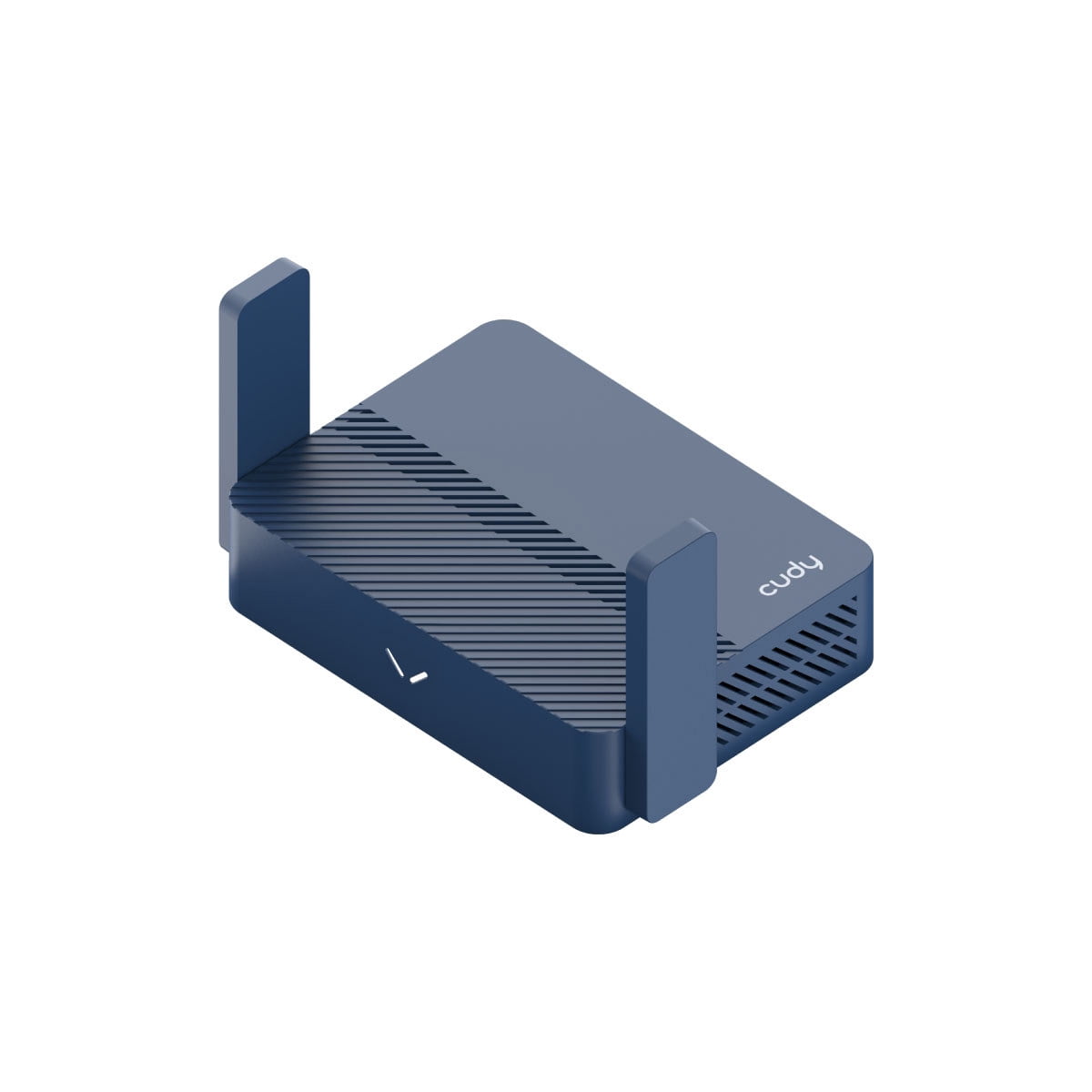

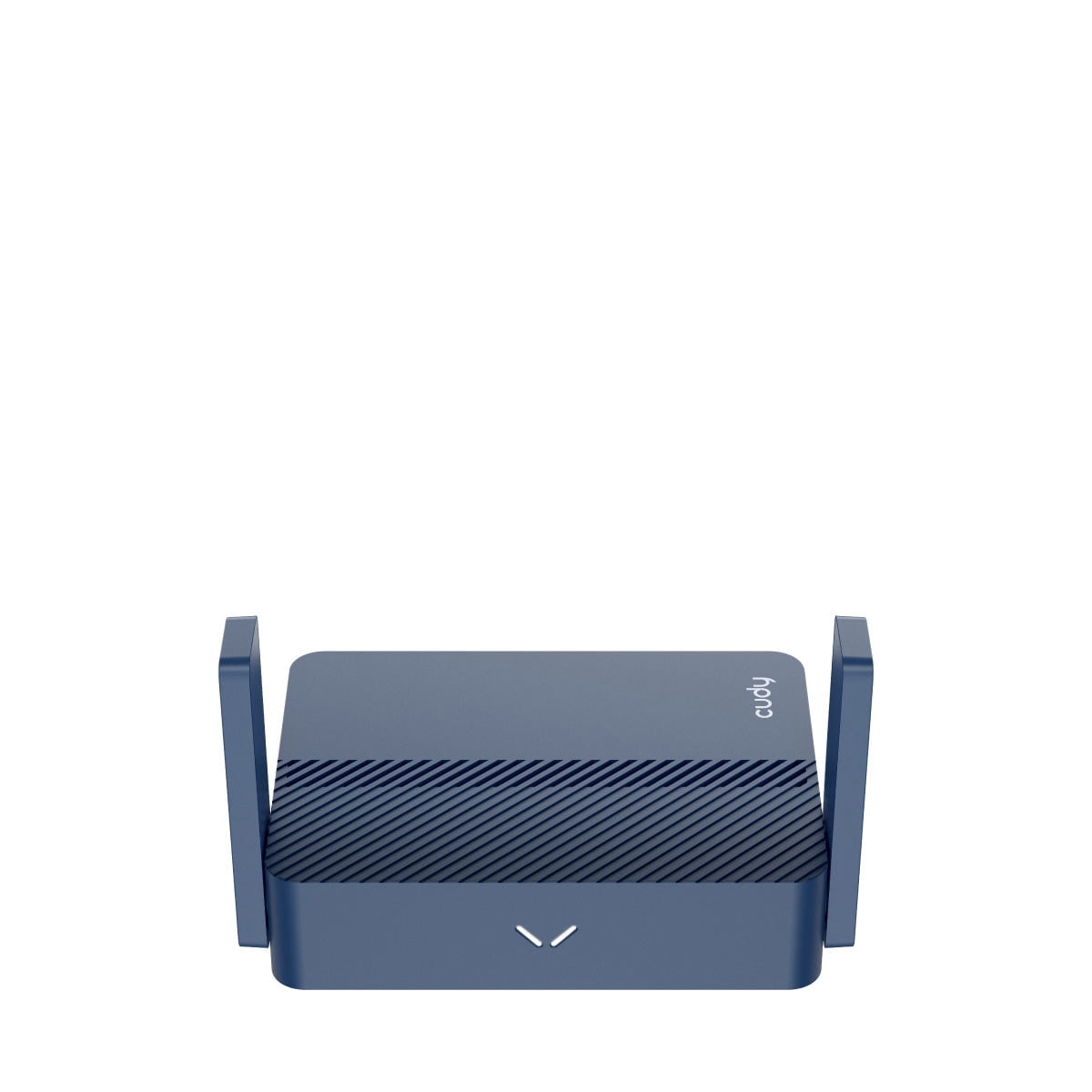

Cudy AX3000 2.5G Wi-Fi 6 Mini VPN Router TR3000

<b>AX3000 2.5G Wi-Fi 6 Mini VPN Router <br>TR3000 1.0 </b><br>A USB-C powered mini WiFi 6 router ideal for encrypt connections back to the office, sharing paid WiFi, and hosting a file server. <br> 1.3 GHz Dual-Core CPU<br> 4-Stream Dual-Band Wi-Fi 6<br> 2402 Mbps + 574 Mbps Wi-Fi <br> 1x 2.5GbE and 1x GbE<br> 1x USB 3.0 Port<br> Powering via USB-C<br> 160 g (5.64 oz.) <br> Cudy Mesh, VPN Server and Client<br> Cudy App, Cloud Control<b>Model Version</b><br>TR3000 1.0<b>CPU</b><br><b>CPU Details</b><br>1.3 GHz Dual-Core, ARM Cortex-A53<b>Memory/Storage</b><br><b>Flash/ROM</b><br>128 MB (1 Gbit) NAND <br><b>DDR/RAM</b><br>512 MB (4 Gbit) DDR3<b>Wireless</b><br><b>5 GHz Wi-Fi Speed</b><br>2402 Mbps<br><b>2.4 GHz Wi-Fi Speed</b><br>574 Mbps<br><b>5 GHz Wi-Fi Streams</b><br>2T2R (2x2 MIMO) <br><b>2.4 GHz Wi-Fi Streams</b><br>2T2R (2x2 MIMO) <br><b>Wi-Fi Antennas</b><br>2x Fixed, 1x Internal<br><b>FEM or PA/LNA</b><br>5 GHz: 3x Internal<br>2.4 GHz: 2x Internal<br><b>Beamforming</b><br>True<br><b>Range Performance</b><br>Max: 180 m (591 ft) <br>Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. <br><b>Wall Performance</b><br>Two wooden walls with thickness &lt; 10 cm (4) <br>One concrete wall with thickness &lt; 20 cm (7) or two concrete walls with thickness &lt; 10 cm (4)<b>Interfaces</b><br><b>2.5G RJ45 Ports</b><br>1<br><b>Gigabit RJ45 Ports</b><br>1<br><b>Ethernet Notes</b><br>The 2.5G port is WAN port, the Gigabit port is LAN port<br><b>USB-A 3.0 Ports</b><br>1<br><b>LED</b><br>System<br><b>Physical Buttons</b><br>Reset Button<br>Configurable DIP Switch<br><b>Power Input</b><br>USB-C Port<b>Power</b><br><b>Power Methods</b><br>DC / PD<br><b>DC Input</b><br>5V 3A, PD<br><b>Power Adapter</b><br>Input: 100 - 240 V, 50/60 Hz AC<br>Output: 5V 3A DC<br><b>Max Power Consumption (W)</b><br>11.5w<br><b>Idle Power Consumption (W)</b><br>4.2w<b>Reliability</b><br><b>Environment</b><br>Operating Temperature: 0 ^oC - 40 ^oC (32 ^oF -104 ^oF) <br>Storage Temperature: -40 ^oC - 70 ^oC (-40 ^oF - 158 ^oF) <br>Humidity: 10% - 90% non-condensing<br>Storage Humidity: 5% - 95% non-condensing<b>Certifications</b><br>FCC, CE<b>Mechanical</b><br><b>Installation</b><br>Desktop<b>Package Content </b><br>TR3000 <br>Power Adapter<br>Ethernet Cable<br>Installation Guide<b>Item Dimension (L"xW"xH")</b><br>8 x 6 x 3 <br><br><b>Weight</b><br>2 lbs <br><br><b>Warranty Information</b><br> 2 years

• SPEED - Experience lightning-fast AX3000 Dual-Band Wi-Fi 6 delivering 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz for seamless streaming gaming and browsing on multiple devices.
• RELIABILITY - Equipped with a powerful 1.3GHz Dual-Core ARM Cortex-A53 CPU 512MB DDR3 RAM and 128MB NAND Flash for stable high-performance network operation.
• SECURITY - Benefit from robust WPA/WPA2/WPA3 Wi-Fi security protocols SPI Firewall and DoS Protection to safeguard your network and data from unauthorized access.
• COMPATIBILITY - Versatile operation modes including Wi-Fi Router Access Point Range Extender WISP and Client ensuring broad compatibility with various network setups.
• EASY SETUP - Features a user-friendly configurable DIP Switch and intuitive web/app control for straightforward installation and management of your network settings.
• RANGE - Extend your wireless coverage up to 591 feet (180m) with Beamforming technology and optimized antenna design ensuring strong consistent signal throughout your space.
• Cudy Mesh VPN Server and Client
• Cudy App Cloud Control
