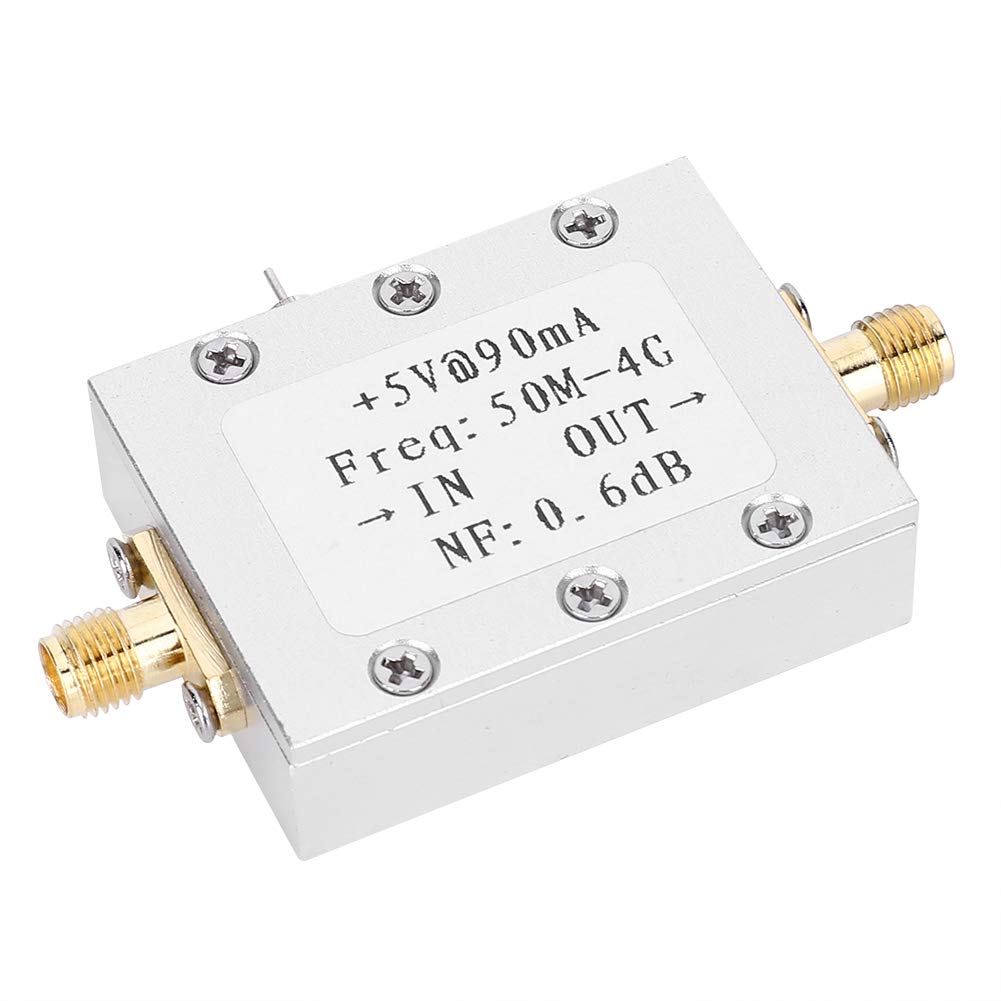

Garosa 50M-4GHz Low Noise Amplifier, 0.6dB NF, 19dB Gain, 23dB P1dB, High Linearity LNA for FM/HF/VHF/UHF Ham Radio
Product details
| Management number | 228661669 | Release Date | 2026/05/31 | List Price | US$7.60 | Model Number | 228661669 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Standard voltage: + 5V Standard current: 90mA Gain: 18dB@0.9G Input / output impedance: 50Ω Maximum outputPower: P1db 22dBm (@ 2GHz) Input : + 10dBm, the output is distorted Bandwidth 0.05-4GHZ (different at different frequencies, see S21 curve) Noise coefficient: 0.6dB@ 0.9GHz Weight: 40g (approx.) Package included: 1 x LNA
- It has 0.6dB typical noise factor, 19dB typical gain, 23dB P1dB
- This is a ultra low noise, high linearity low noise amplifier module
- Can be used for high dynamic range receiver LNA application, and amplify small of 110dBM
- You can cascade several LNA modules in order to improve gain
- Generally used for or intermediate frequency preamplifier of radio receiver, and high sensitivity amplifying circuit of electronic detection equipment, as well as transceiver communication card, tower mounted amplifier (), comb
| UPC | 719233184868 |
|---|---|
| ASIN | B07Y69SPVK |
| Model | Garosa65q1mh8bwg |
| Brand Name | Garosa |
| Item Weight | 39 Grams |
| Part Number | Garosa65q1mh8bwg |
| Manufacturer | Garosa |
| Output Power | 0.16 Watts |
| Material Type | Material |
| Mounting Type | Surface Mount |
| Supply Current | 90 Milliamps |
| Item Dimensions | 4.33 x 1.97 x 0.79 inches |
| Package Type Name | small box |
| Specification Met | FCC |
| Number of Channels | 1 |
| Included Components | inc |
| Maximum Supply Voltage | 5 Volts |
| Minimum Supply Voltage | 5 Volts |
